Residential | School | Utility | Commercial Building | Fleet

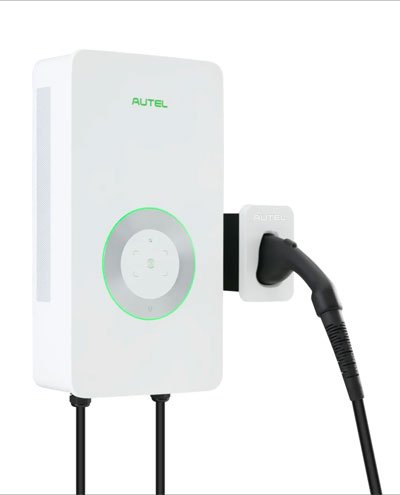

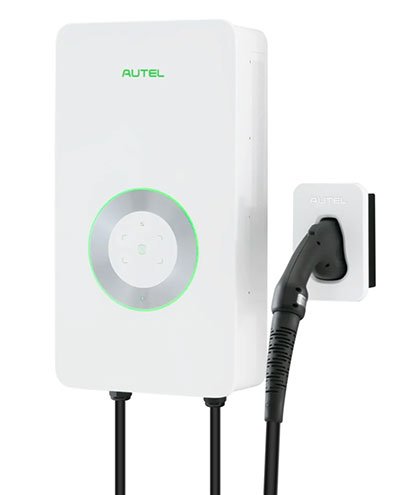

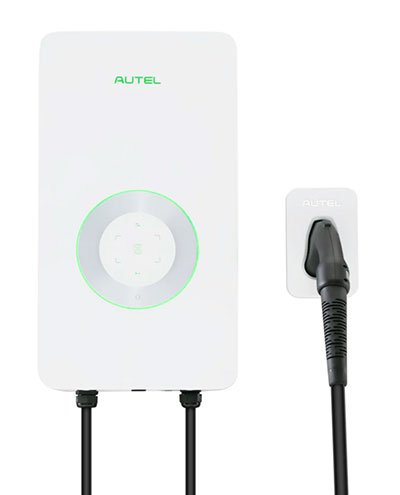

One of the most intelligent bi-directional EV chargers developed in the world, this Energy Star-certified 12kW power unit provides fast charging and excellent energy savings. It serves as a perfect home management system, powering your home from the vehicle during peak hours, thereby reducing electricity costs. The app or cloud can regulate the flow of electricity. When integrated with a solar panel, the V2X can store surplus energy in the grid and efficiently use power as per user requirements.
Get a Quote
| DC output connection | |
| Charging mode | CCS1 or CHAdeMO |
| Output power | 7/12kW |
| Output voltage | CCS1: 150V DC-950V DC, CHAdeMO: 150V DC-500V DC |
| Output current | 40A @ 300V |
| Number of outputs | 1*CCS1 or 1*CHAdeMO |
| Peak efficiency | ≥97 |
| AC input connection | |
| Earthing system | L1/L2/PE |
| Input voltage | 208/240Vac |
| Input frequency | 60Hz |
| Power factor | ≥0.99 |
| Harmonic distortion (THDi) | ≤5% |
| General characteristics | |
| IP and IK rating | NEMA 4X |
| Operating altitude | 2000m |
| Operating temperature range | -25℃~+50℃ |
| Storage temperature range | -40℃~+85℃ |
| Mounting | Wall or floor using a pedestal |
| Dimensions (H×W×D) | 711×386×170mm |
| User interface | |
| Status indication | LED/APP |
| Cable Length | 5m |
| User interfaceUser interface | Autel Charge APP; Autel Charge Cloud |
| Connectivity | Bluetooth, Wi-Fi, Ethernet, CAN, RS485 |
| Communication protocols | OCPP 1.6J (Can be upgraded to OCPP 2.0.1 later) |
| User authentication | APP, RFID card |
| Software update | |
| Software update | OTA updates via web portal |
| Certification and standards | |
| Safety and Compliance | UL2202, CSA C22.2 No.107.1, UL9741, UL 1741:2021, CSA 22.2.107.1:2016, NEC Article 615 |
| Grid standards | UL 1741 SA/SB:2021, IEEE 1547:2018, IEEE 1547.1:2020, Rule 21, HECO Rule 14; IEEE 1547.1:2022; Interoperability testing; PRD-024-1 |
| EMC compliance | FCC 15 Class B |
| Certification | Energy Star, OpenADR 2.0b |
| Warranty | 24 months, warranty extension possible |
