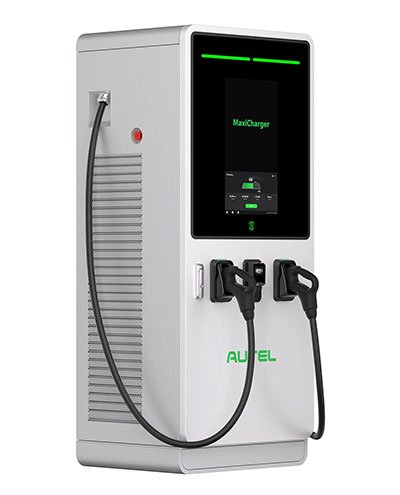

The whopping 240kW fast charging with the world's first triple protection technology ensures safe charging and intelligent battery management for an extended battery life. The DC Fast chargers are compatible with 99.5% of vehicles on the planet.

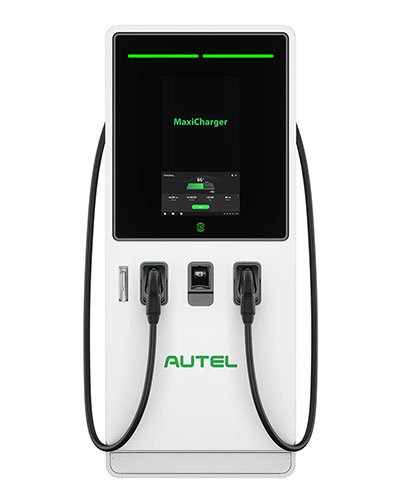

The 27-inch display showcases Charger+Cloud BMS+VCI real-time analysis, ensuring a safe environment in the area.
Achieve up to 20% extra battery saving with an integrated AI algorithm and EV battery protection through the health charging mode.
Customization options include power settings from 60kW to 12kW and customizable cable lengths tailored to site conditions. MaxiCharger DC Fast is strategically installed at prominent landmarks—shopping malls, hotels, and residential areas across Dubai, Abu Dhabi, and other parts of UAE.
Get a Quote
| DC output connection | |
| Charging mode | Mode 4: CCS1 |
| Output power | 60 kW/120 kW/180 kW/240 kW |
| Output voltage | 150-1000 V |
| Output current | CCS1:Standard: 200A; Optional 300A (Nominal), 400A (Peak) CHAdeMo: 125A or 200A |
| Number of outputs | 2*CCS1, or 1*CCS1+1*CHAdeMO |
| Average efficiency at full power | ≥96% |
| AC input connection | |
| Earthing system | 3P, PE (No neutral) |
| Input voltage | 3-phase 480V AC+10%~-15% |
| Input frequency | 60 Hz |
| Power factor | ≥0.98 |
| Harmonic distortion（THDi） | ≤ 5% |
| General characteristics | |
| IP rating | NEMA 3R |
| Operating altitude | 2,000 m |
| Operating temperature range | -35℃~+55℃ |
| Storage temperature range | -40℃~+70℃ |
| Mounting | Floor Standing |
| Dimensions（H×W×D） | 1950×820×600mm (60kW/120kW) 1950×820×700mm (180kW/240kW) |
| User Interface | |
| Screen type | 27 inch LCD Touch Screen (15.6 inch LCD Touch Screen optional) |
| Status indication | LED/LCD/App |
| User Interface | Autel Charge APP; Autel Charge Cloud |
| Connectivity | 4G, Bluetooth, Wi-Fi, Ethernet |
| Communication protocols | OCPP 1.6J (Can be upgraded to OCPP 2.0.1 later) |
| User authentification | APP, RFID card, Credit card (Optional) |
| Software update | |
| Software update | OTA updates via web portal |
| Certification and standards | |
| Safety and compliance | UL 2202, UL 2231-1, UL 2231-2, CSA No.107.1-16, NEC Article 625, ISO 15118 Plug&Charge |
| Certification | FCC 15 Class A (Class B optional) |
| Warranty | 24 months, warranty extension possible |
